BTL-05-5-1C

Relé výkonové 5V 5A 1c 56R 21,4x16,5x15mm
Contact Form: SPDT
Max. Switching Current: 5 A
Coil Voltage: 5VDC
Type: Power
Coil Resistance: 56 Ohm
Coil Power: 450 mW
Max. Switching Power: 625VA/140W
Max. Switching Voltage: 380VAC/110VDC
Dielectric Strength (between coil and contacts): 2500VAC
Operate/Release time: 7ms/4ms

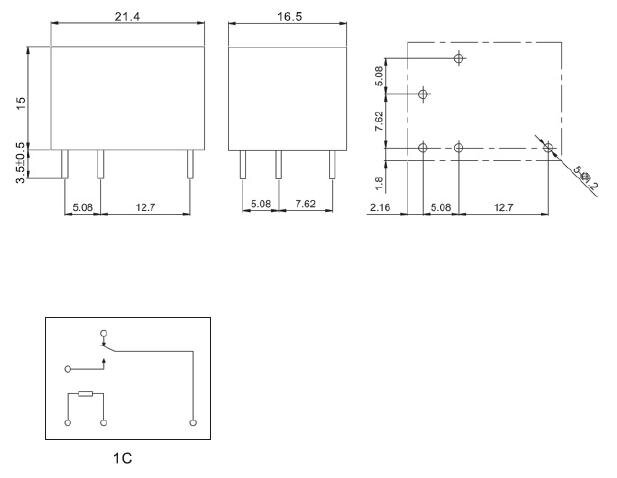

Dimensions: 21,4x16,5x15mm
Contact Material: Ag alloy
Description: miniature
Note: n/a
Series: n/a
